Features 3/2.5 aero space grade titanium - ultra-lite suspension design delivers 3.50" travel - 5.5 lbs Frame & Rear Shock standard version.

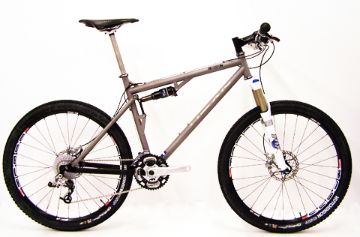

The Ace 3.0 FS is one of lightest full suspension frame on the market at just 5.50 lbs. (size small) - full bike, race ready at just - 24.50 lbs.
Proven modified "swing link" design delivers a full 3.00" of active travel.
"Linear Link" bottom brackt pivot provides for a fully active suspension design with no chain pull or pedal kick back during braking - it's super smooth.
Statigic "Y" Link placement in conjunction with the FOX Float AVA L eliminate pedal induced "bobbing" giving you maximum power output with each pedal stroke.
Available with FOX Float RP23 with compression, rebound, and Pro Pedal.
Hand built with custom gauged cold worked, stress relieved, seamless 3/2.5 aerospace grade titanium.
Oversized titanium tubing is placed strategically throughout the frame to eliminate unwanted lateral flex while still providing for a super smooth ride.
Extra smooth sealed cartridge bearings throughout deliver super smooth suspension travel.
6061 - T6 Aluminum rear section provides maximum stiffness and precise traction control.
Precision CNC machined swing-arm pivots eliminates unwanted frame flex.
CNC machined I.S. disc mounts come stock.
CNC machined 6061-T6 dropouts come stock with a replaceable hanger.
Finished with a super clean brush or satin finish.
Hand crafted to perfection right here at DEAN - Boulder Colorado.
