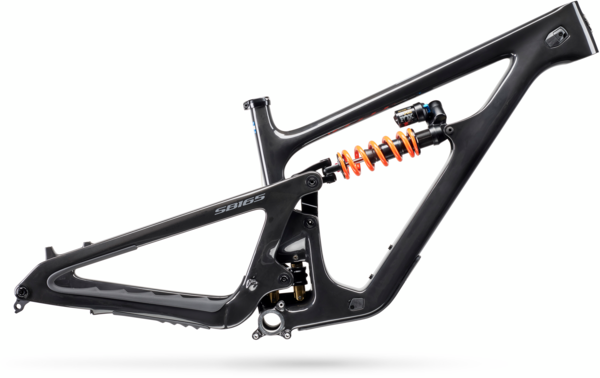

Yeti Cycles SB165MX T-Series DHX2 SLS
$4,800.00
Details
We said it already knows. And now it knows better. Proven worthy time and again at rampage, reconfigured to fit the bill as a zero-hesitation go-to for whatever your pleasure. Un-rack it for all the park laps, pedal it on character-building epics, push it up spooky steep darksides "nobody" knows about. Whatever the question, unhard your decisions. you ask. It gives.
| FRAME SIZE | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 365 | 400 | 440 | 470 |
| EFFECTIVE TOPTUBE LENGTH (mm) | 573 | 604 | 625 | 653 |
| HEADTUBE ANGLE | 63.5° | 63.5° | 63.5° | 63.5° |
| EFF. SEAT TUBE ANGLE | 76.8° | 76.9° | 76.9° | 76.9° |
| ACTUAL SEAT TUBE ANGLE | 71.5° | 72° | 72.1° | 72.6° |
| CHAINSTAY LENGTH (mm) | 433 | 435 | 437 | 439 |
| WHEELBASE (mm) | 1207 | 1242 | 1266 | 1298 |
| ESTIMATED BB HEIGHT (mm) | 345 | 345 | 345 | 345 |
| STANDOVER (mm) | 730 | 738 | 744 | 750 |
| HEADTUBE LENGTH (mm) | 95 | 101 | 107 | 118 |
| FORK AXLE TO CROWN (mm) | 588 | 588 | 588 | 588 |
| FORK OFFSET (mm) | 44 | 44 | 44 | 44 |
| STACK (mm) | 620 | 625 | 630 | 640 |
| REACH (mm) | 430 | 460 | 480 | 505 |
| FRONT CENTER (mm) | 774 | 807 | 829 | 859 |
| VERTICAL FORK TRAVEL (mm) | 152 | 152 | 152 | 152 |
| FRAME SIZE | RIDER HEIGHT (cm) | RIDER HEIGHT (in) |
|---|---|---|
| SMALL | 155 cm - 170 cm | 5’1” - 5’7” |
| MEDIUM | 165 cm - 180 cm | 5’5” - 5’11” |
| LARGE | 178 cm - 191 cm | 5’10” - 6’3” |
| X-LARGE | 185 cm - 201 cm | 6’1” - 6’7” |
Specs
| Frame | TURQ Series carbon fiber frame, Switch Infinity suspension technology, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, universal derailleur hanger (UDH) and axle. |
|---|---|
| Fork | Sold Separately |
| Rear Shock | FOX FACTORY DHX2 2 POS LEVER / SM: 400#, MD: 450#, LG: 500#, XL: 550# |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Raw Gloss / Small / 29-inch front / 27.5-inch rear | 786044572191 | F25167TSMRGGD20000000 |
| Raw Gloss / Medium / 29-inch front / 27.5-inch rear | 786044572153 | F25167TMDRGGD20000000 |
| Raw Gloss / Large / 29-inch front / 27.5-inch rear | 786044572115 | F25167TLGRGGD20000000 |
| Raw Gloss / X-Large / 29-inch front / 27.5-inch rear | 786044572238 | F25167TXLRGGD20000000 |
| Spruce / Small / 29-inch front / 27.5-inch rear | 786044572177 | F25167TSMPSUD20000000 |
| Spruce / Medium / 29-inch front / 27.5-inch rear | 786044572139 | F25167TMDPSUD20000000 |
| Spruce / Large / 29-inch front / 27.5-inch rear | 786044572092 | F25167TLGPSUD20000000 |
| Spruce / X-Large / 29-inch front / 27.5-inch rear | 786044572214 | F25167TXLPSUD20000000 |
